Task failed due to following error: Cannot save package to file. Error SQL71561: Error validating element in Always Encrypted Implementation

Problem Summary While I am trying to configure Always Encrypted for one of my databases, I received an error as below.
Sep 19 2018 02:31:58 [Informational] TaskUpdates: Message:Task: ‘Performing encryption operations’ — Status: ‘Failed’ — Details: ‘Task failed due to following error: Cannot save package to file. The model has build blocking errors: Error SQL71561: Error validating element [dbo].[ViewTableName]: View: [dbo].[ViewTableName] has an unresolved reference to object [DBName].[dbo].[TableName].
Environment Details Microsoft SQL Server 2016 (SP1) (KB3182545) – 13.0.4001.0 (X64)   Oct 28 2016 18:17:30   Copyright (c) Microsoft Corporation  Enterprise Edition: Core-based Licensing (64-bit) on Windows Server 2016 Standard 6.3 (Build 14393: ) (Hypervisor) Observations In fact, looking at the wizard error log report, I have seen hundreds of error messages similar to above for different elements. While  investigating, it is found that the error has raised due to the usage of three part reference in one of views. And it is confirmed by Microsoft that its a bug in the Always Encrypted tool that it performs a strict integrity verification for the entire database schema instead of the targeted verification, that means, only for the columns to be encrypted. Solution/Work around To solve the problem, you need to make sure the referenced objects are present in your environment. In my case, I copied all dependent databases in testing environment and followed the below steps.
  1. Use Generate Scripts(right click on the database, select Generate Scripts in the Tasks, in the wizard, we can select View) to back up the view.
  2. Drop all the selected views which use the three-part naming conventions.
  3.  Apply always encrypt feature to columns.
  4.  Execute the generated script to re-create the view  if needed
Additional Information When I tried to replicate the same issue in another environment with the below configuration, the above issue could not be replicated. Microsoft SQL Server 2016 (SP1) (KB3182545) – 13.0.4001.0 (X64)   Oct 28 2016 18:17:30   Copyright (c) Microsoft Corporation  Developer Edition (64-bit) on Windows 10 Enterprise 6.3 (Build 14393: ) (Hypervisor) Test Scripts

--Create two databases
create Database Test1
create Database Test2

use test1
--Create the below table in Test1
create Table testtable (Col1 varchar(5000))
Insert into dbo.testtable Select ('Test data')

use test2
--Create the below table in Test1
create Table testtable (Col1 varchar(5000))
Insert into dbo.testtable Select ('Test data')

--Create the below view in database Test2
create View vw_test1 as Select Col1, Cast(GetDate() as datetime) as [DATECREATED],
  Cast(GetDate() as datetime) as [DATELASTMODIFIED],
  Cast(newid() as uniqueidentifier) as [_IMPORTED]   From Test1.dbo.Testtable

--Apply "Always Encrypted", you will see the mentioned behavior.

Try yourself with the above code and share your comments…
Advertisements

Always Encrypted – A new column level security feature in SQL Server 2016

Always Encrypted (AE) is a new feature introduced in SQL Server 2016 to secure your data in SQL Server at column level. Perhaps, SQL Server has many options to secure the data, the new feature Always Encrypted stands out from the list with unique characteristics – “Always Encrypted”.

Before we get into details about Always Encrypted, let us quickly look at the security features in the SQL Server in comparison as an overview.

AE-Always Encrypted, DDM – Dynamic Data Masking, TDE – Transparent Data Encryption

Why do we call Always Encrypted?

As the name depicts, Always Encrypted feature in SQL Server always ensures your data encrypted, that means, the data at rest and in motion. The encryption and decryption happens at client application using an Always Encrypted driver. This separates the encryption from SQL Server database engine and enforces more security in a better controlled manner.

How do we implement Always Encrypted?

First and foremost action is to install the right version of SQL Server 2016.If you do not have the right version, you will not find the option “Encrypt Columns” in “Task” of the database options. If you are not using SSMS version 13.0.4001.0 or above, you will not be able to see this option in your SSMS.

You can find and download SP1

There are two ways, we can implement Always Encrypted in SQL Server using Wizard and T-SQL. However, we need to know that for existing table/column data, there is no way to implement the AE using T-SQL in SQL Server 2016(SP1). I mentioned the service pack as a caveat because Microsoft may change this behavior in future, but unlikely as of now. For existing data, we need to make sure the AE needs to be implemented using Wizard. It is quite good to be noted there is an option to generate PowerShell script for the existing data to encrypt that can be run later.

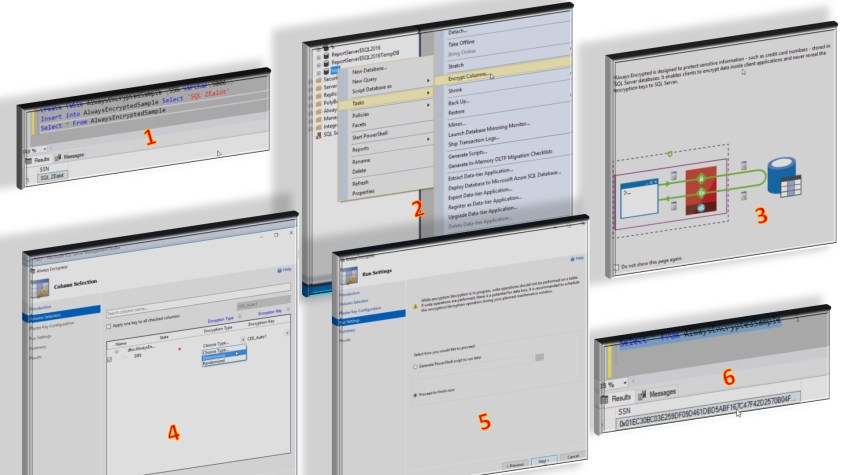

Using Wizard

Using T-SQL


/*1*/ CREATE COLUMN MASTER KEY CMK_Auto2
WITH (
  KEY_STORE_PROVIDER_NAME = 'MSSQL_CERTIFICATE_STORE',
  KEY_PATH = 'CurrentUser/my/B27A4A9FCC37F2C5B1807249FE1285CD4A40B88F');
/*2*/ CREATE COLUMN ENCRYPTION KEY AEColumnKey
WITH VALUES
(
COLUMN_MASTER_KEY = CMK_Auto2,
ALGORITHM = 'RSA_OAEP',
ENCRYPTED_VALUE = 0x016E000001630075007200720065006E00740075007300650072002F006D0079002F00620032003700610034006100390066006300630033003700660032006300350062003100380030003700320034003900660065003100320038003500630064003400610034003000620038003800660053FD933BC3E3E6E5FFD935F452A5C4113FF56E4D946D78B22A69415FF8EF69D9B3A5541F2463BBC32D06AC88AE95B4CDBBEE7A9D1DD80043D7C900F28917637F4414565CB3F2B29CEEE5C03DF182C4F62395CDAD59A59BFCBD421889DB9EFB2B5250AA597268011B8ACCFFA7A1B5D846BD476BBD8F8239D2681C800E3BCD848485AEC6E69FE76D06D2E213FB36FCBCA5E8B75FE67D21C1C05EB7CF819AD9F96701116A2B642F690455FC7DC48AEEB1825BB20ECD428F910C002EE3D186706E00F76C608EF78FBB147ABA798309092517A39C9C4031B3857C599B238174AA1E8433A649D63D194278B0A4EFBF15DF4E4B5B4468FB73FC8992B3E34606AB306E2E19BADEE4B38288FF77B9A8E45A56BB321091EF0CF3567076ED27D875286CB2232177F610B9A0DAEBFA34ABA9856A094E26E995987AD050D27954DDB08BED9A34C6D19CBE6B2271A7E716C33850DB8781C9D3B762C0920EED57BB9D2BA581F7AC1A46EA55962200FD26405FE31005D413BA5B624E5AF2770377A13EB68FB681242B8B719499175113E84073013BDC6E03E5F82EC070B9151705F1C564106B93E3C7566E41BAD00209AB4587278640FE225F797DD9BB83284E8A674DFC7F48558441E00BC856161FC93A38E337B050915450E7B0ED848CDB63272B65319B26B45119ED081852DEBE53DFF7A6CD21935FC3CBF2C4852AD01CFF0153B76C196F7667
);
/*3*/ CREATE TABLE AlwaysEncryptedSampleSQL(
  EmpID INT PRIMARY KEY,
  SSN NVARCHAR(15)
    COLLATE Latin1_General_BIN2
    ENCRYPTED WITH (COLUMN_ENCRYPTION_KEY = AEColumnKey,
    ENCRYPTION_TYPE = Deterministic,
    ALGORITHM = 'AEAD_AES_256_CBC_HMAC_SHA_256') NOT NULL);

Why do we need two encryption keys?

Yes, Always Encrypted uses two keys – Column encryption key and master encryption key. Column encryption key is used to encrypt the value in the column and database engine stores the column encryption key in the SQL Server instance. However, master key is being stored in external key store like Windows Certificate store or Azure Key Vault and database engine will have metadata pointer to the external key store. Master key is responsible to encrypt the column encryption key.

How do we verify the above implementation?

1. Check the master key

SELECT name KeyName,column_master_key_id KeyID,
  key_store_provider_name KeyStore,
  key_path KeyPath
FROM sys.column_master_keys;

2. Check the column key

SELECT name KeyName,
  column_encryption_key_id KeyID
FROM sys.column_encryption_keys;

3. Check the sys.columns

Select name,collation_name,encryption_type_desc, encryption_algorithm_name,column_encryption_key_id
From sys.columns where object_id in (object_id('AlwaysEncryptedSample'),object_id('AlwaysEncryptedSampleSQL'))

How do the application encrypt and decrypt the value?

Client application uses Always Encrypted driver. I would suggest you to go through “Using Always Encrypted with the ODBC Driver for SQL Server” to understand better the usage. Anyway, this blog post will be followed up with the next post, on which I am currently working on, to understand the performance impact.

What are the different types of encryption in Always Encryption feature?

Yes, AE comes up with two different type of encryption.

1. Deterministic
As the name suggests, this type will always produce the same encrypted value for a given text. Ideally, this may not be a good option for all the keys as a good intruder can easily understand the value by analyzing data pattern as an example, gender, polar questions etc. As the encrypted value for a given text is always same, the encrypted column can very well part of a join, grouping and indexing.

2. Randomized
As the name suggests, it will produce randomized value which will make the encryption more secure than the earlier.

Gotchas!!!!…..

1. There is no straight forward method to implement AE for existing data apart using the wizard. However, wizard can generate PowerShell Script to do the action later.
2. Encryption method – Deterministic is less secure compared to “randomized”.
3. Encryption method – Randomized cannot be part of joins/groups/indexing.
4. INSERT/UPDATE operations are not allowed directly to table unless through the client driver. We will receive the below error message.
Msg 206, Level 16, State 2, Line 5
Operand type clash: varchar is incompatible with varchar(8000) encrypted with (encryption_type = 'DETERMINISTIC', encryption_algorithm_name = 'AEAD_AES_256_CBC_HMAC_SHA_256', column_encryption_key_name = 'CEK_Auto1', column_encryption_key_database_name = 'test') collation_name = 'SQL_Latin1_General_CP1_CI_AS'

5. By specifying encryption setting in “Additional Connection Parameters” in SQL Connection window, who has access the encrypted table, can see the actual data. However, the login cannot modify or insert new data.

6. Column encryption changes the collation of the string column to Latin1_General_BIN2
7. Encryption will increase the size of the table

See Also

Please refer Transparent Data Encryption

To know more about other Always Encrypted limitations, please refer Aaron’s blog.
